Our Corrugated Skins - There is a difference!
Example one:
90 degree offset 3'' peak to peak. 3'' must be
precise. If
this tolerance is not exact with each
corrugation it will progressively become out of specs. Example:
Each corrugation will become further out of specs
with each corrugation
application.
Example two:
If exact 90 degrees from the horizontal is not
maintained the rivet
holes in the spar will become off set and no longer align
with the proper
spacing from the corrugation.
Further;
the top and bottom trailing edge corrugation will also be
out of alignment.
Ailerons:
There is an offset of 7 degrees off the 90 degrees
horizontal plus 40
arc minutes (there are 60 arc minutes in one degree). Therefore, this
totals just slightly more
than 7.5 degrees off the horizontal 90 degrees.
In as much as the corrugated skin is offset the “peak
to peak” will be
slightly more than 3'' as measured from the horizontal. All these factors
must be considered in order
to maintain the proper specs.
Beechcraft corrugated
skins measurements are
not 3'' peak to peak; they are less.
This slightly less dimension will be enough that the
corrugations will
not align with the spar holes.
RJ Dauhn
Aircraft is capable of fabricating these required
dimensions.
Do not be misled by our
lower prices. We

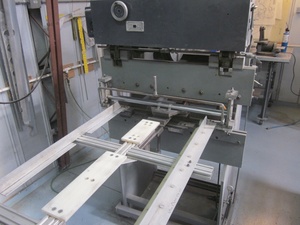

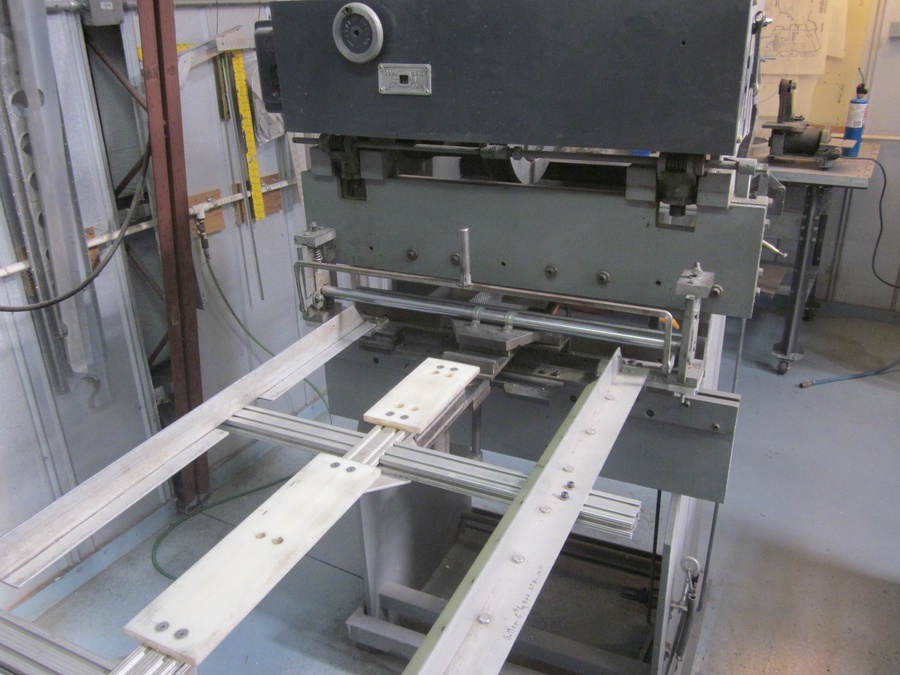

have designed fixtures in order to
accomplish these requirements.
As a consequence,
we enjoy a lower production cost which, in effect, is passed
on to you, the
customer. Give
us a try; you won’t be
disappointed.
ITEM |
PRICE |
Lower
Flap (.020 thick) 12'' x 84'' |
$110.00 |
Upper Flap (.020 thick) 12-1/4'' x
84'' |
$105.00 |
Lower Aileron (LH) 12'' x 69'' |
$95.00 |
Lower Aileron (RH) 12'' x 69'' |
$95.00 |
Upper Aileron (LH) 9-5/8'' x 69'' |
$89.00 |
Upper Aileron (RH) 9-5/8'' x 69'' |
$89.00 |
Rudder or Elevators24'' x 69'' |
$120.00 |
Rudder29'' x 69'' |
$230.00 |
For Beechcraft “style” corrugation: Call for price

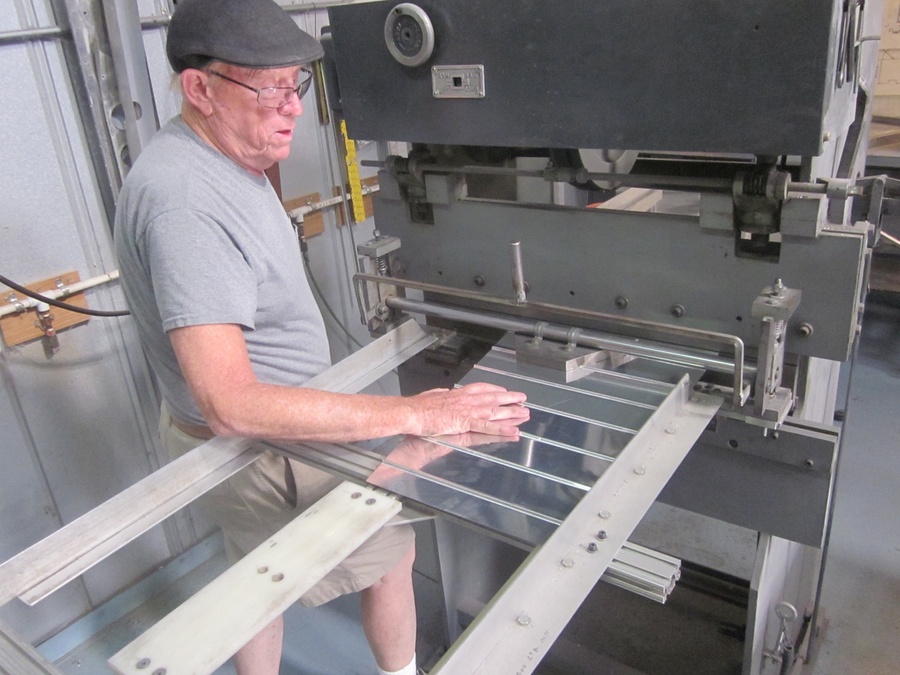

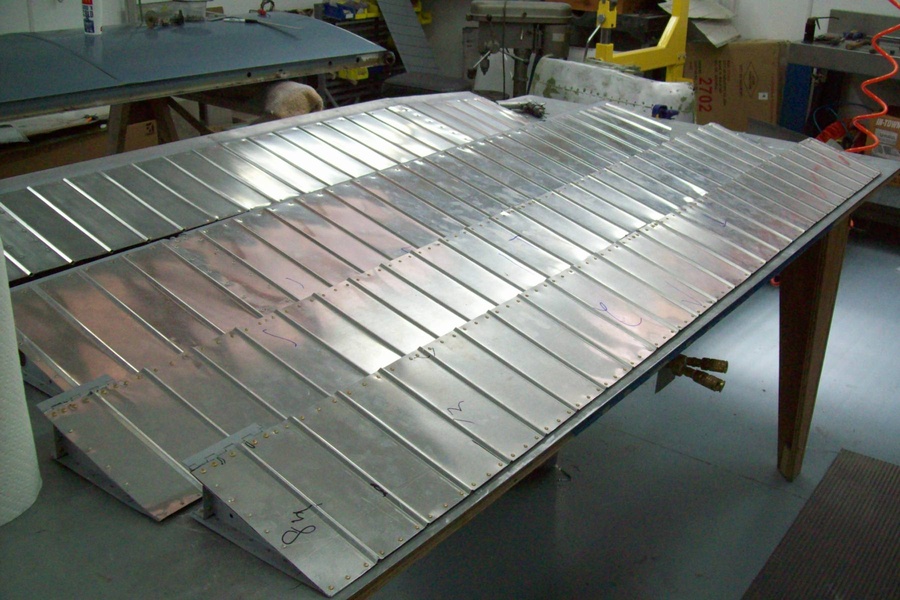

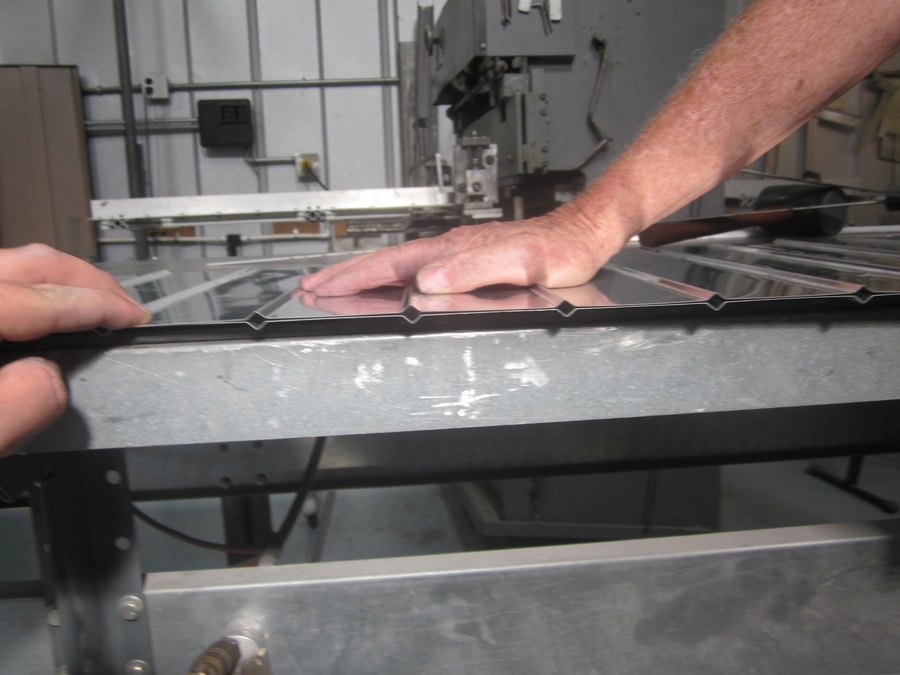

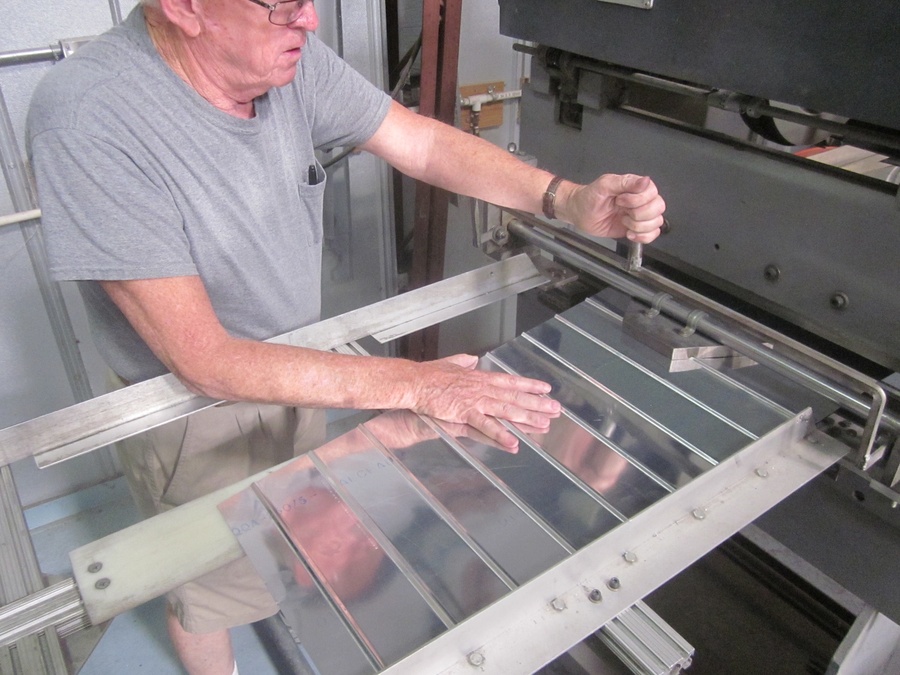

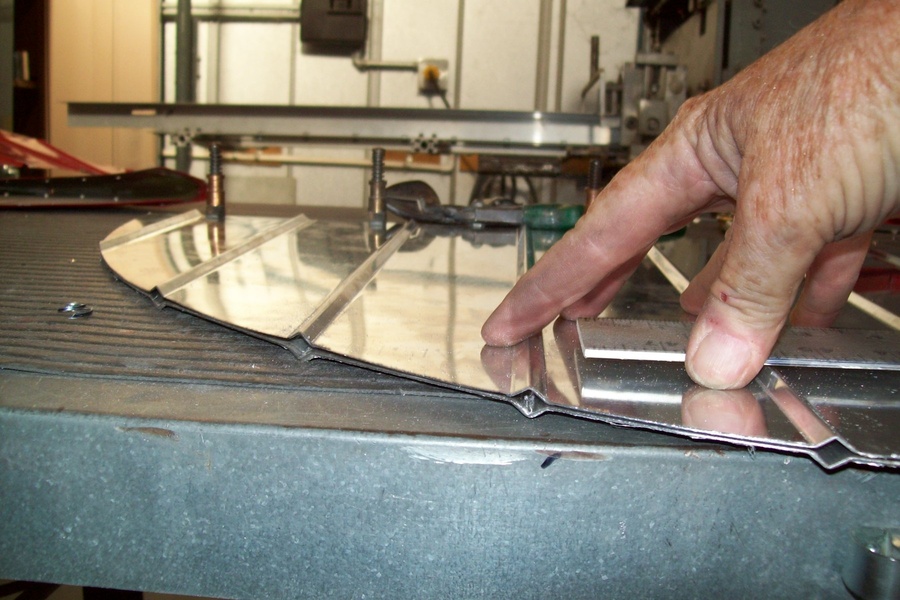

Shown below are corrugated skins. Notice how exact the dimensions are to one another We do sell the skins separately at a very competitive price.
Please click on any of the photos for a larger view!
